Item Description

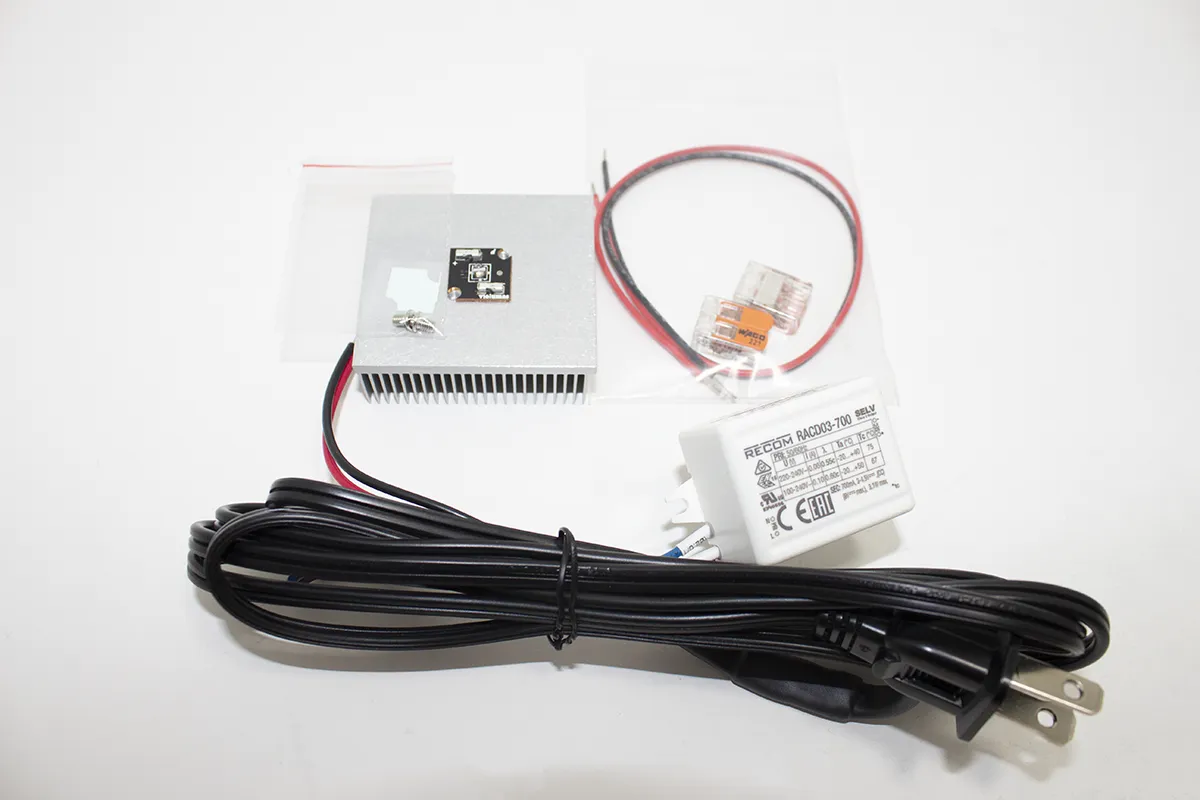

Plug-and-Play UV LED Application Set - Includes LED (chip-on-board - COB), matched heat sink with thermal interface pads and driver kit including power supply, plug, connector and wires. We have matched the components for a plug-and-play Application Set. Everything is in the box to quickly be up and running with instructions.
Select 110V or 220V in pull down box above.

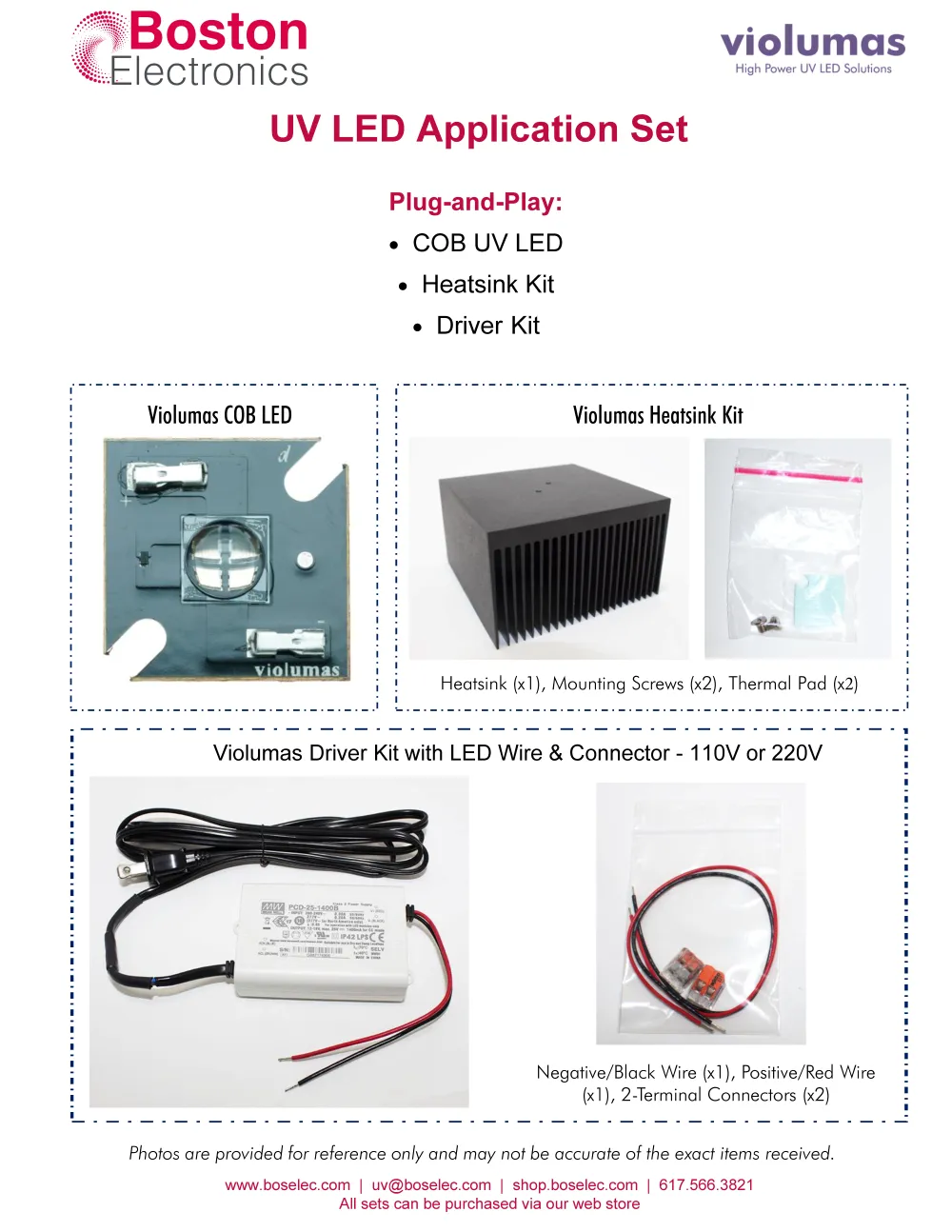

This set (SET-295-MED-110V or -220V) contains the items below. See the links below for the specification and use guides for the items in the sets:
- UV LED (COB) - 295 nm Medium Power - (97 mW, 30 degree output) -
- Heat Sink - 30.1.006770 with thermal interface pads
- Driver kit for 110V - PS‐700A6W‐ND-110V with plug, connectors and wires
- OR
- Driver kit for 220V - PS‐700A6W‐ND-220V with plug, connectors and wires
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
|
Items in Set: (SET-295-MED-110V or -220V) |
Item Part Number |
| UV LED (COB) - 295 nm Medium Power |
VC1X1C48L3-295 97 mW, 30 degree output |
| Heat Sink | 30.1.006770 with thermal interface pads |
| Driver kit for 110V | PS‐700A6W‐ND-110V with plug, connectors and wires |
| OR | |
| Driver kit for 220V | PS‐700A6W‐ND-220V with plug, connectors and wires |
